Example 3.8: Instant Centers

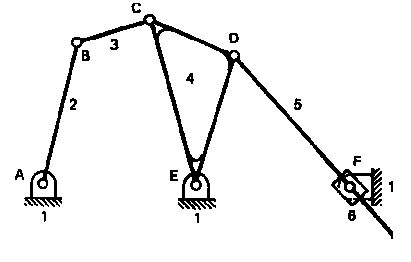

Find all of the instant centers for the six-bar mechanism shown below:




Solution:

# of Centers = N = n(n-1)/2 = 6(6-1)/2 = 15

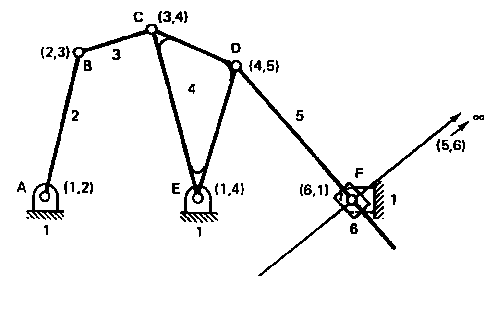

Trivial Centers:

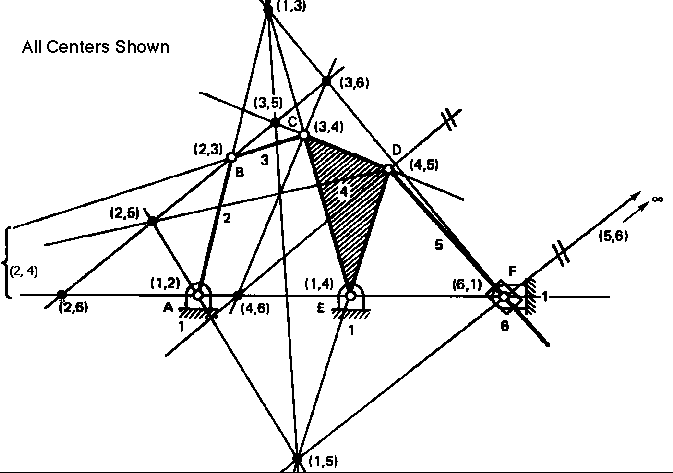

All Centers Shown:
